Display components
Driver electronics and accessories
Evaluation Kits

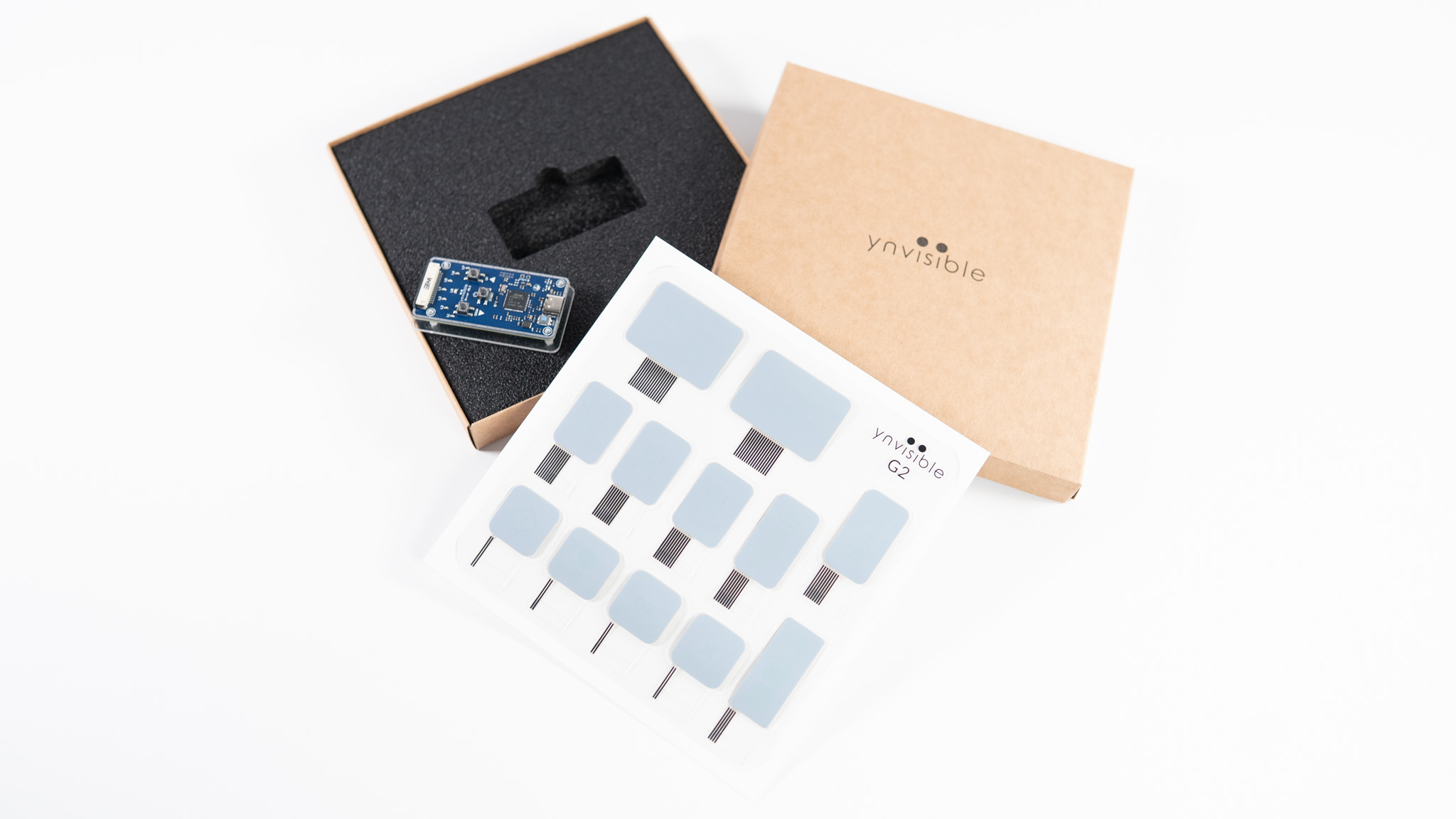

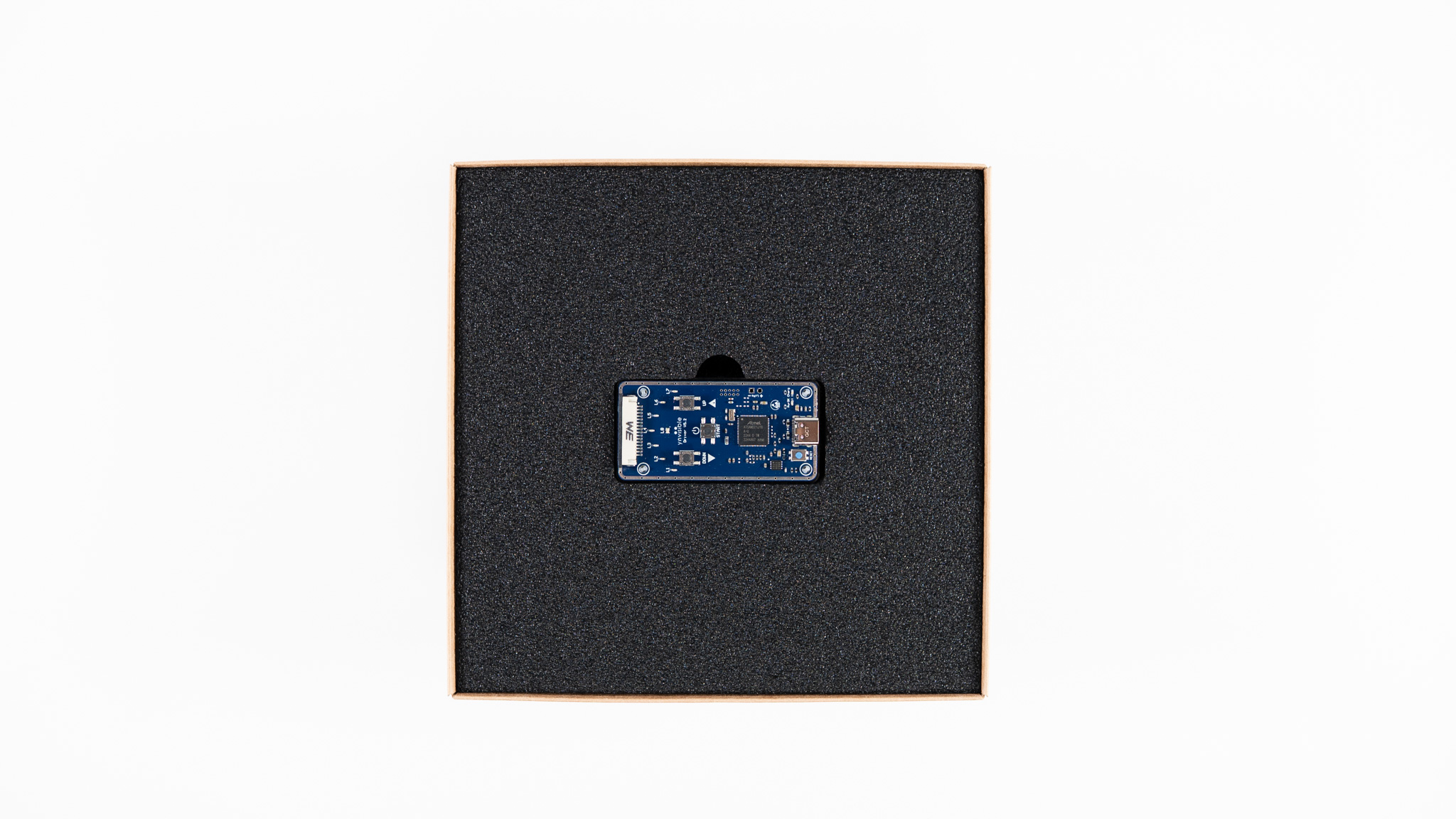

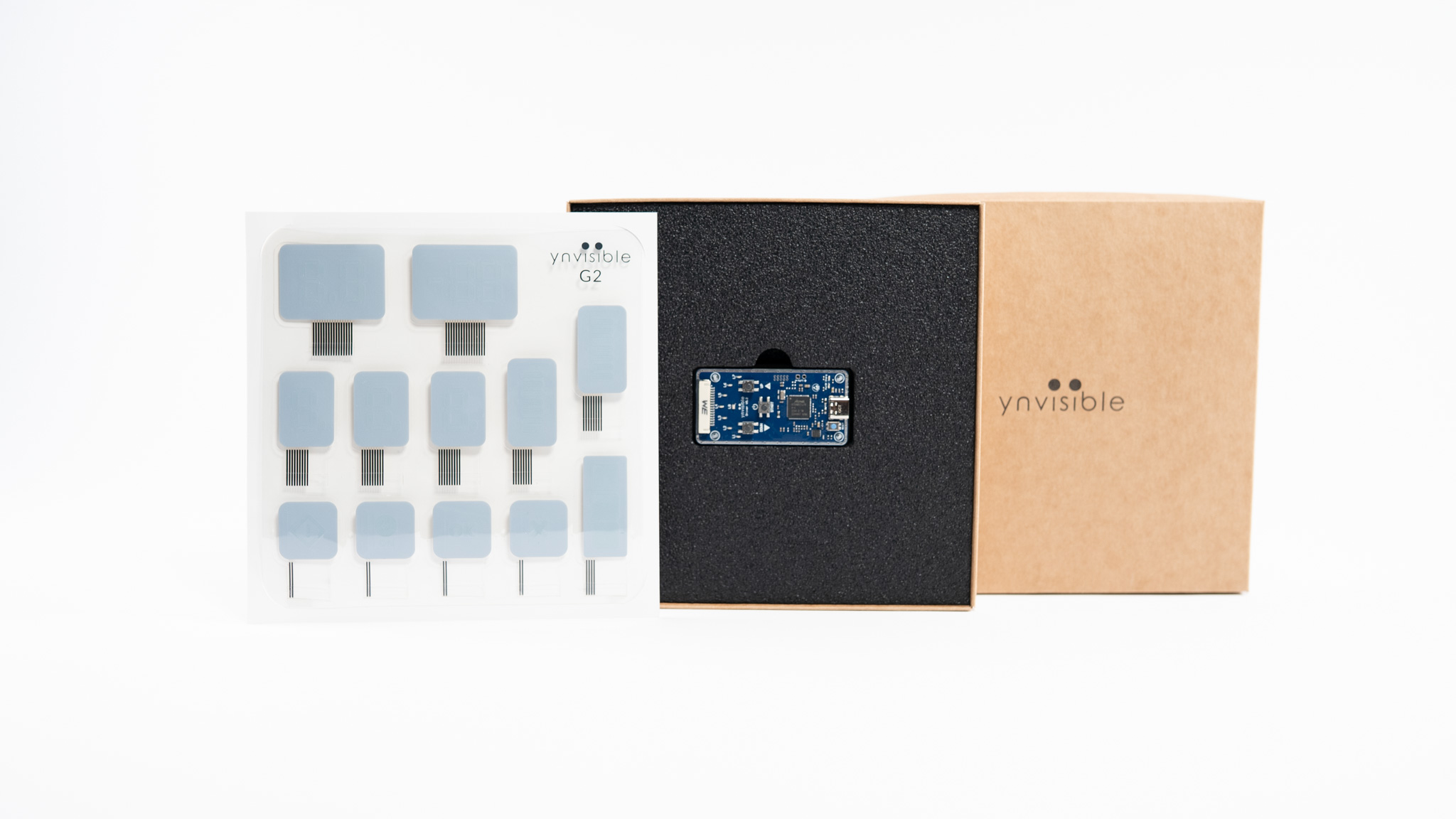

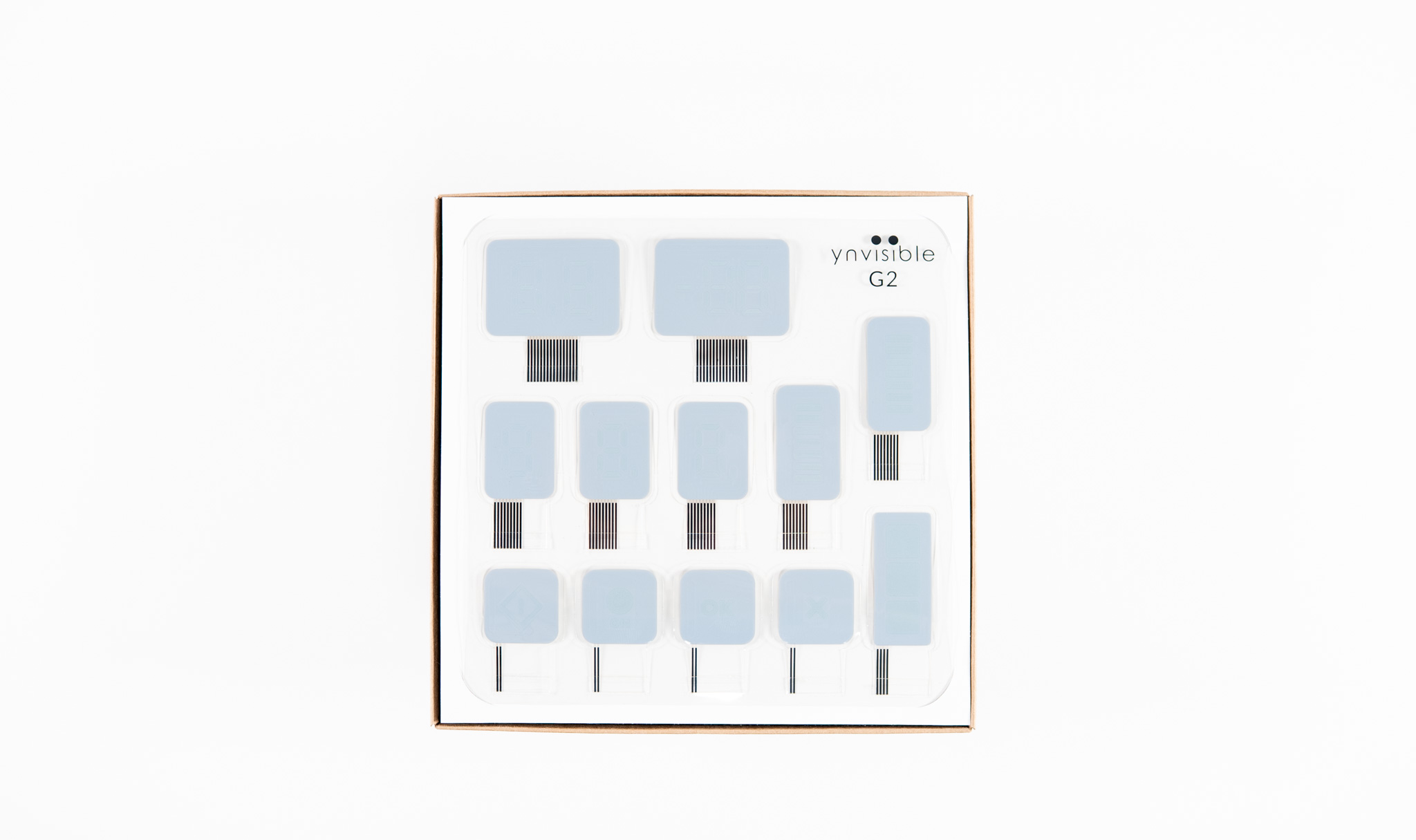

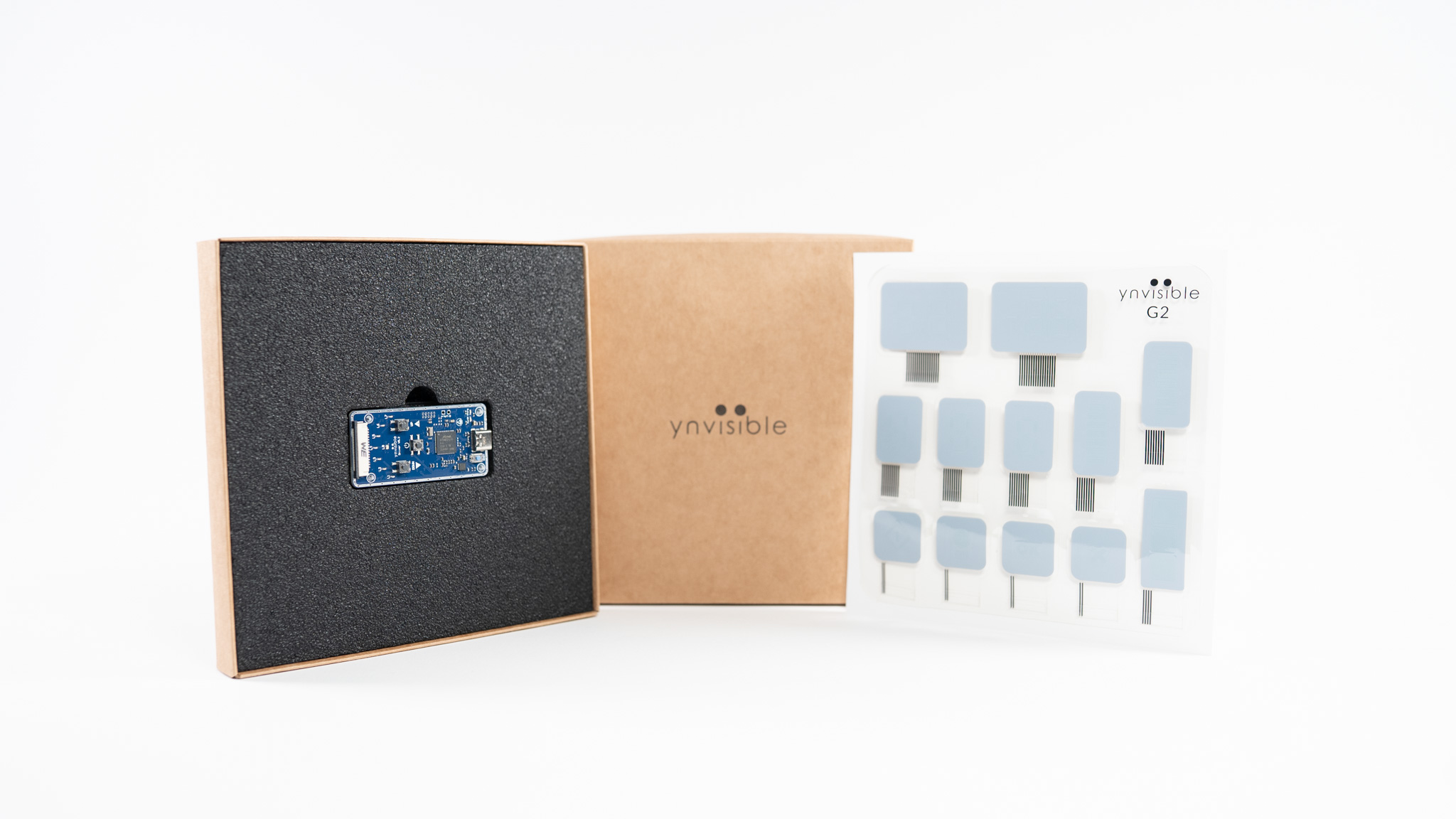

Segment E-paper Display Kit
€ 85 EUR
Evaluate the ultra-low-power, thin and flexible printed e-paper displays. Each e-paper display kit contains different display designs, a manual display driver, and an e-paper display driver with an I2C interface.
- Secure card payment
- Documentation and support
- The prices shown in our shop are solely for handling and packaging fees. Everything Ynvisible offers in the online store consists of evaluation samples.
- As such, they are not classified as products, and the values presented should not be interpreted as product prices. In order to discuss product prices, contact our sales team.
€ 85 EUR
€ 190 EUR -55%
Display parameters
Power parameters
Detailed info
Display parameters
White Reflectance
40%
Contrast Ratio (Yb/Yd)
1:3
Angle Dependency
No, lambertian
Thickness
300 μm
Graphical layout
Segments
Segment dimensions
1 mm - 100 mm
Response time
100-1000 ms
Power parameters
Driving voltage
1.5 V
Driving method
Direct drive
Energy consumption
1 mJ/cm^2
Pulse energy
0.25 mJ/cm^2
Image retention w/o power
1-5 minutes
Operating conditions
-20C - +60C
Activations/Cycles
1.000.000
