Watch product launch webinar

On March 15, Ynvisible released an updated version of e-paper display with several new and exciting benefits. Learn about the improvements in the recorded live webinar from March 15.

Oops! Something went wrong while submitting the form.

Endless design flexibility
enables new applications

Explore our kits and get started

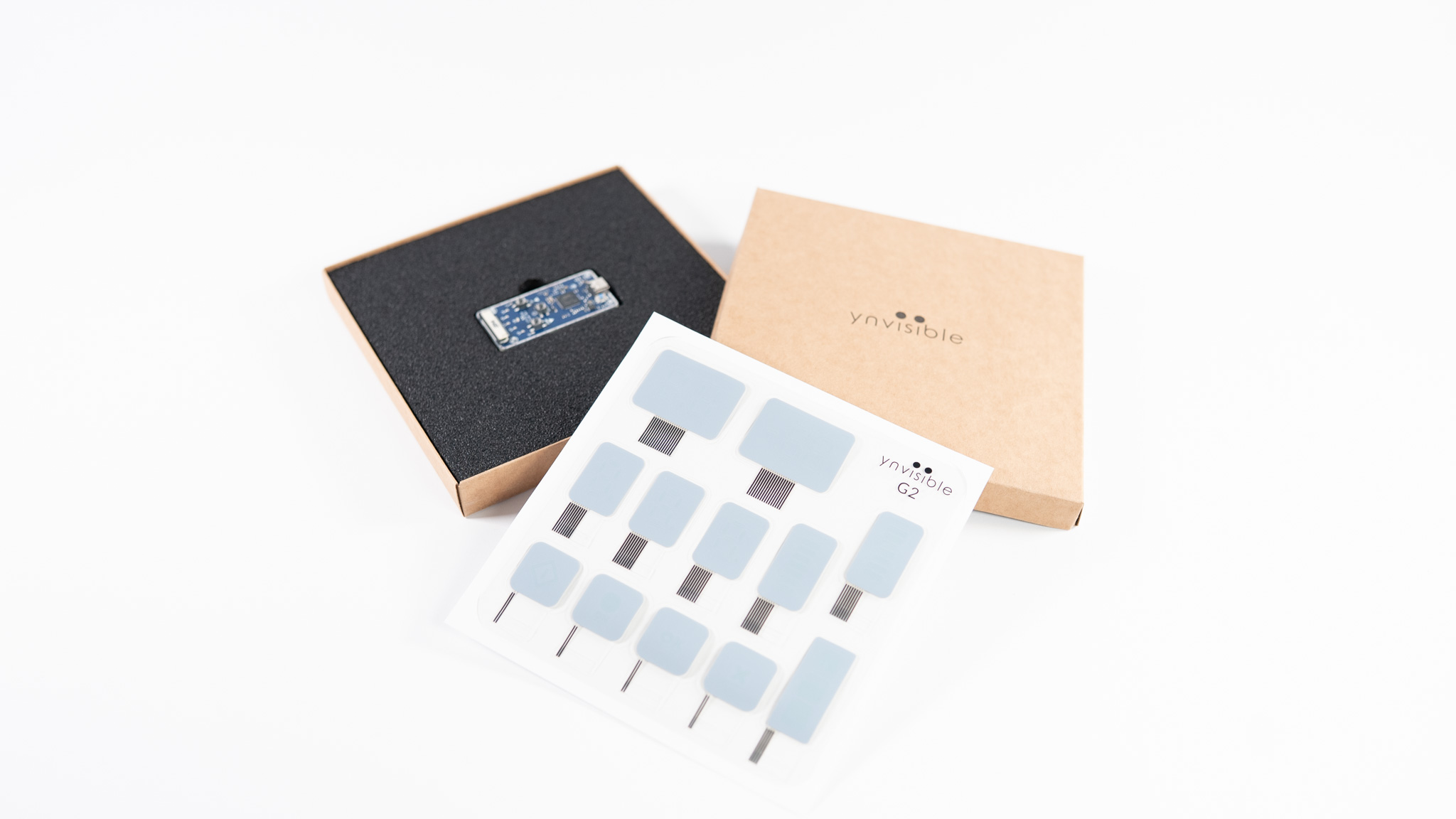

Ynvisible Segment Display Kit

Segment E-paper Display Kit

€ 85 EUR
Evaluate the ultra-low-power, thin and flexible printed e-paper displays. Each e-paper display kit contains different display designs, a manual display driver, and an e-paper display driver with an I2C interface.
Go to shop
No items found.

We are beating incumbent technologies

download datasheet

Ynvisible's technology

YNVISIBLE UNIVERSITY

We have collected a wide range of articles that delve deeper into various aspects of our printed e-paper displays, including design rules, display driving, and getting started guides to the technology. Check out the latest articles and learn more about our technology.

go to ynvisible university

Electrochromic e-paper Displays

The Ynvisible Display is an e-paper technology, a so-called Electrochromic Display ("ECD"), based on organic electrochromic polymers. It is categorized as a reflective display - meaning that it reflects ambient light instead of using a backlight. The displays are screen-printed on a plastic substrate, which makes the displays very thin and flexible.

Ideal for
Not ideal for
Segmented displays or icon displays
High resolution matrix displays
Monochrome colors
Full color displays
Activations every minute or less frequent
High-frequency or sub-second activations
Ultra-low power budget
Millisecond refresh rate
Thin and/or flexible form factor
Backlight required

Read more about what is an electrochromic display

ENERGY

Ynvisible's e-paper displays have the lowest energy consumption on the market for most use-cases. For static usage (when the display maintains the same image) the display consumes a maximum of 0,28µW per cm2 segment area. For dynamic usage, the power consumption depends on the number of display updates per day according to the formula below.

Power calculation

P = 1,67 + 0,01 × n µW/cm2
n is the number of full display updates per day
Ynvisible power consumption per square centimeter per number of display updates per day.

Example 1: The display is readable only when needed

Example 2: The display is always readable

COST

Ynvisible is the world leader in Sheet-to-Sheet and Roll-to-Roll production of electrochromic technology. These high volume production methods, in addition to cost-effective materials sourcing, drive down the cost of individual displays while maintaining high production yield, rapid through-put speed, and premium quality. Choosing Ynvisible’s display technology will reduce cost at both the component level and the system level.

Lower Component Cost

Ynvisible offers a low-cost alternative to reflective segmented LCDs, which have historically been the most inexpensive display technology on the market. The key driver for the low price point is low-cost production techniques with high volume capabilities

The screen-printing techniques used in our production lines require less capital investment, energy, tooling costs, and material waste compared to vacuum deposition and chemical vapor deposition processes used for other display technologies.

The displays are produced on inexpensive PET substrates, and the rapid growth of the printed electronics industry has resulted in an economy of scale for the functional inks that are used to produce the displays.

Lower System Cost

Using an ultra-low power consumption display which is easy to integrate with no or little extra driver electronics will save cost on a system level. Many of our clients have been able to reduce or completely remove their existing power supply by choosing our Segmented displays.

APPEARANCE

Ynvisible rarely creates standard display components. Our philosophy is that each product requires a unique display for an ultimate user experience.

The printability of the displays ensures that customers can attain a degree of customization that is not available from alternative display technologies. This creates an attractive appearance that is highly appreciated by both product designers and end-users.

Flexible Display Design

Display segments can be designed in essentially any shape and form. Letters, symbols, numbers, and graphics elements are all possible.

Colors and Graphic Overlays

Color filters and other static graphic elements can easily be printed on top of the display. The graphic overlay is commonly used to add graphics that should always be visible and complement the dynamic display segments.

Cut-out Shapes

Most conventional displays are bulky rectangle shapes. This is not the case for Ynvisible Displays. Essentially any cut-out shape is possible, whatever fits your product the best.

ROBUSTNESS

The displays have a wide operating range and are very durable to heating or cooling chocks. Since they are printed on a plastic substrate they are very durable in terms of physical impact, bending, and piercing. They will not break, crack, or shatter like conventional glass-based displays.

Sustainability

Eco-friendly and non-toxic display alternative thanks to energy-efficient production processes, organic materials, and overall low material usage. Ynvisible's displays are an ideal choice for single-use and disposable products.

Frequently asked questions

Feel free to contact us if your question was not answered

Introduction

who-is-ynvisible
what-is-ynvisible-e-paper
what-are-ynvisible-displays-benefits
what-are-some-common-use-cases-for-ynvisibles-displays
is-ynvisibles-electrochromic-displays-the-same-as-e-ink-or-e-paper

Displays & Technology

what-is-the-power-consumption
what-is-the-operating-voltage
how-to-drive-the-displays
can-you-do-high-resolution-pixel-displays
do-you-have-design-guidelines-for-custom-displays
what-is-the-refresh-speed
can-you-do-color-displays-and-what-are-the-standard-colors
can-you-do-bistable-displays
what-connectors-do-you-recommend
what-is-the-contrast-ratio-or-color-difference
what-is-electrochromism-and-electrochromic-displays
can-you-do-passive-and-active-matrix-displays

Services and offerings

what-are-ynvisibles-capabilities
can-i-get-samples
do-you-make-custom-designed-displays
do-you-make-full-electronic-product-solutions
do-you-offer-printed-electronics-contract-manufacturing
