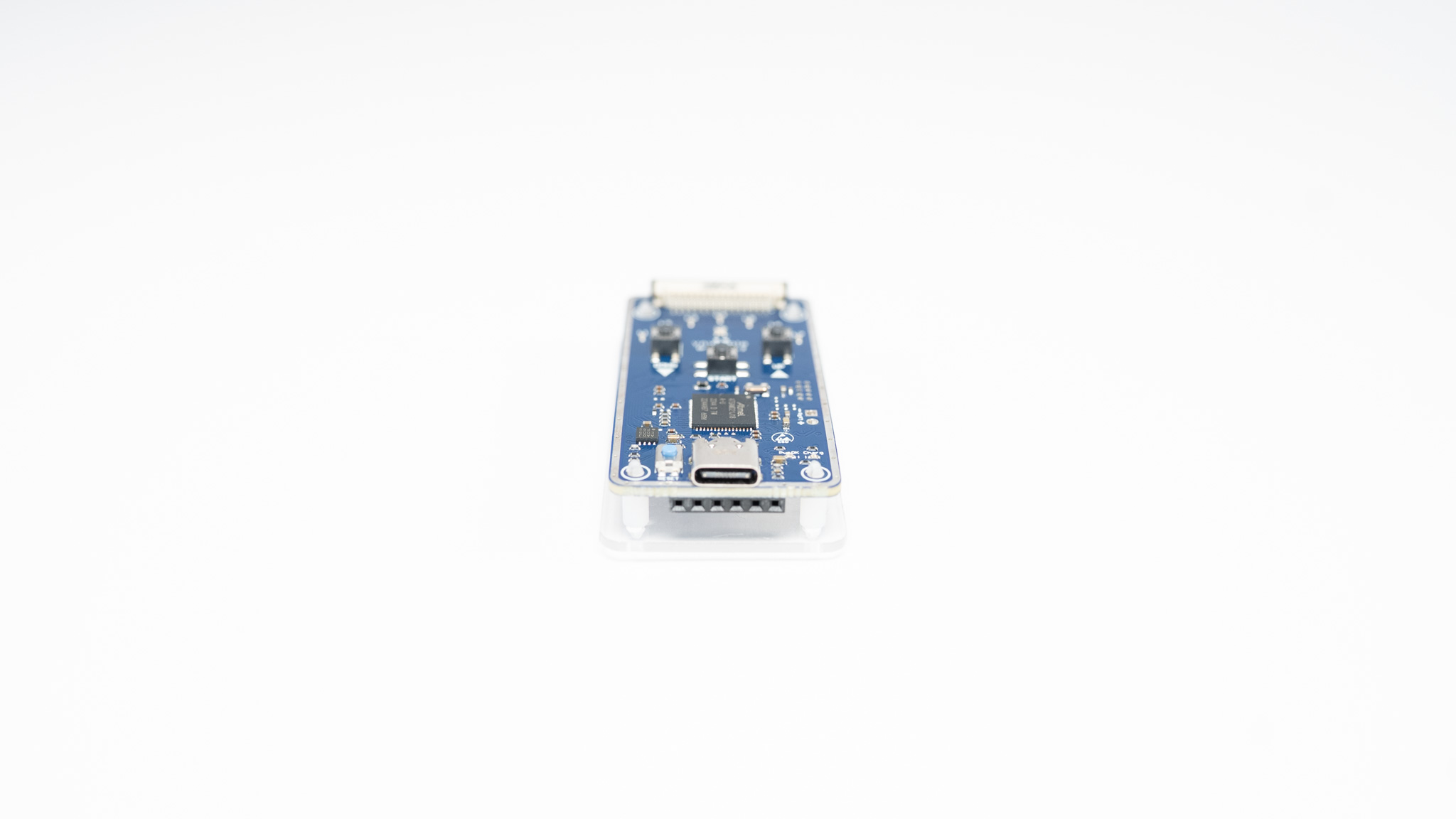

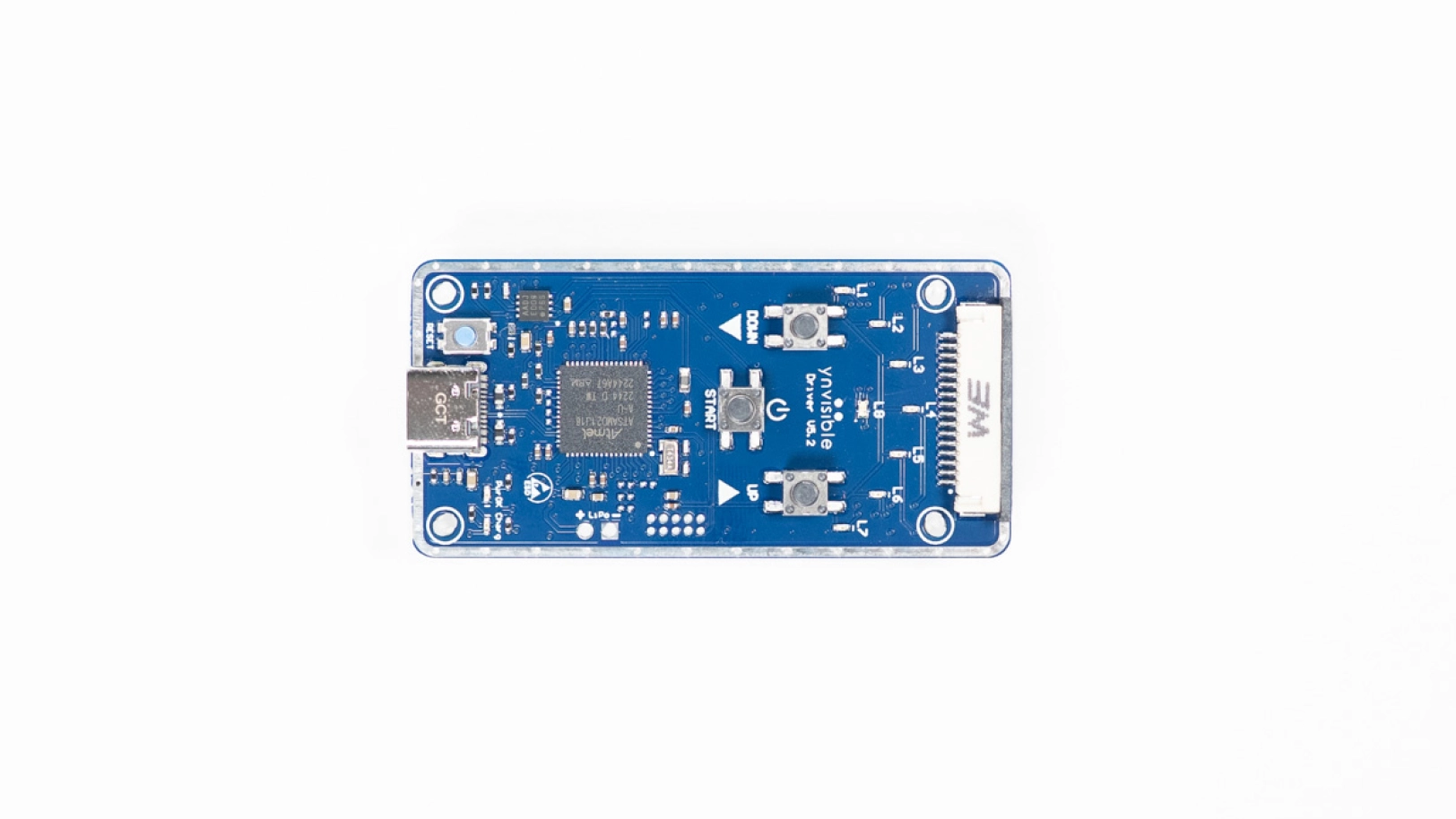

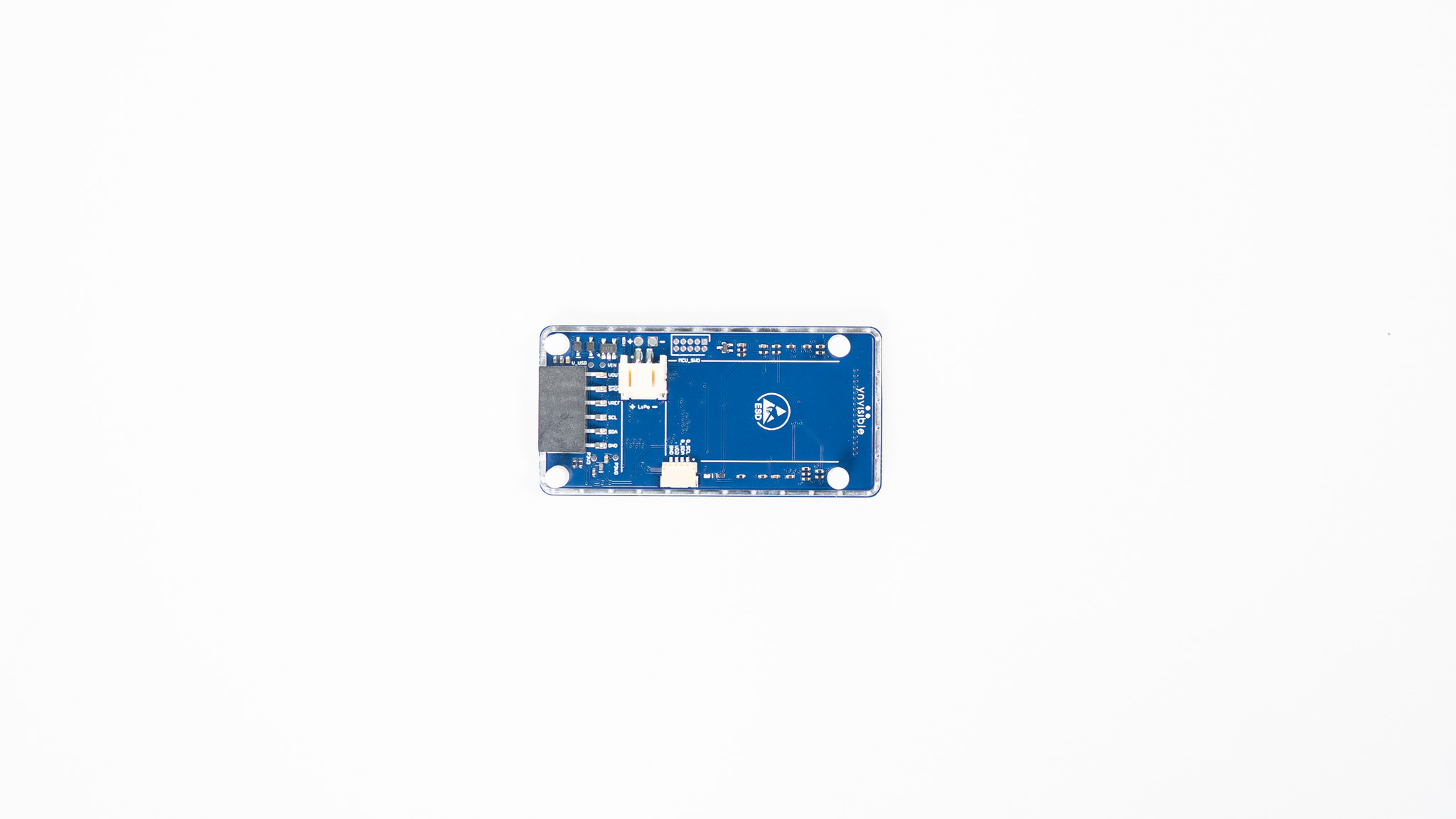

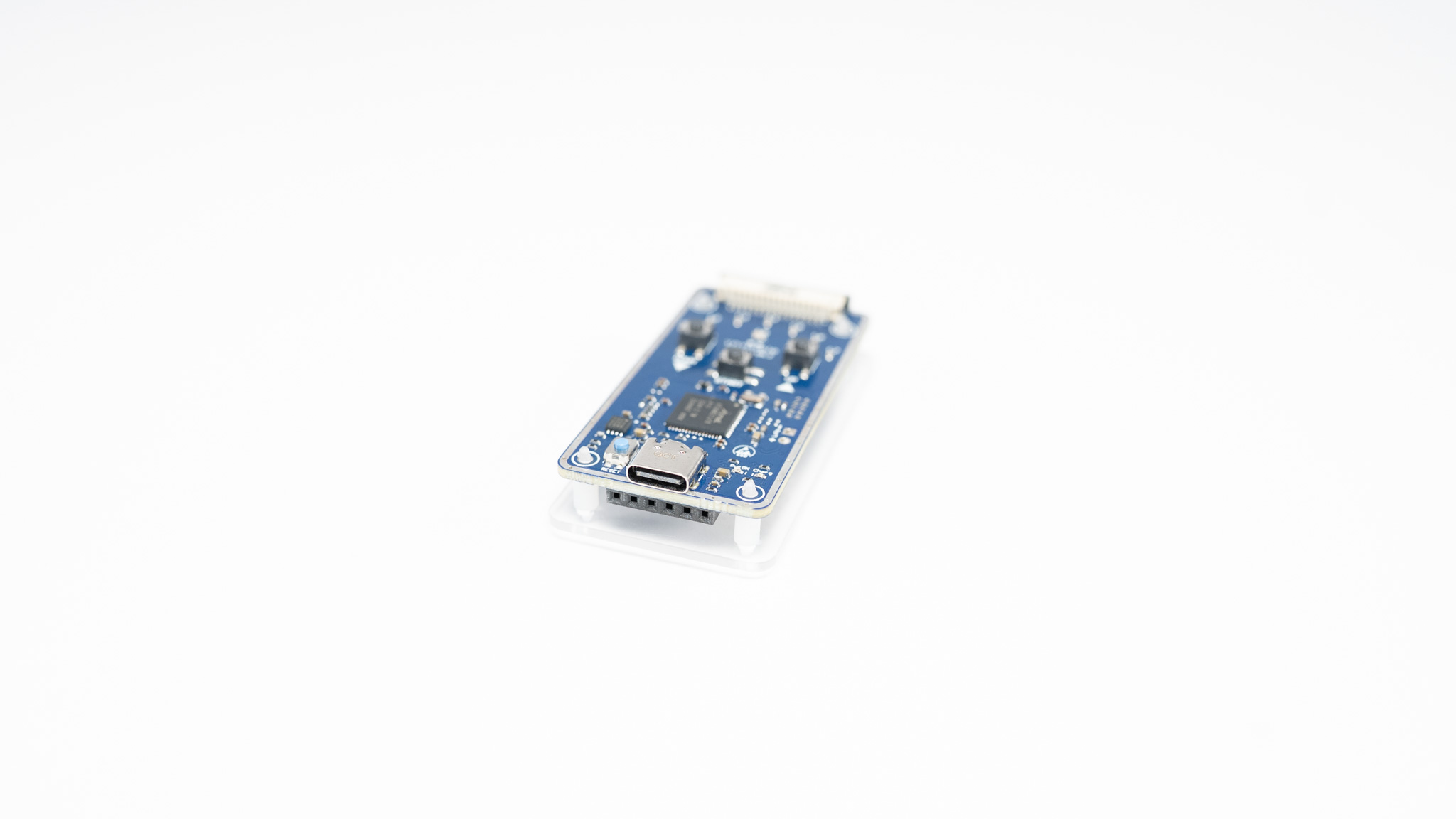

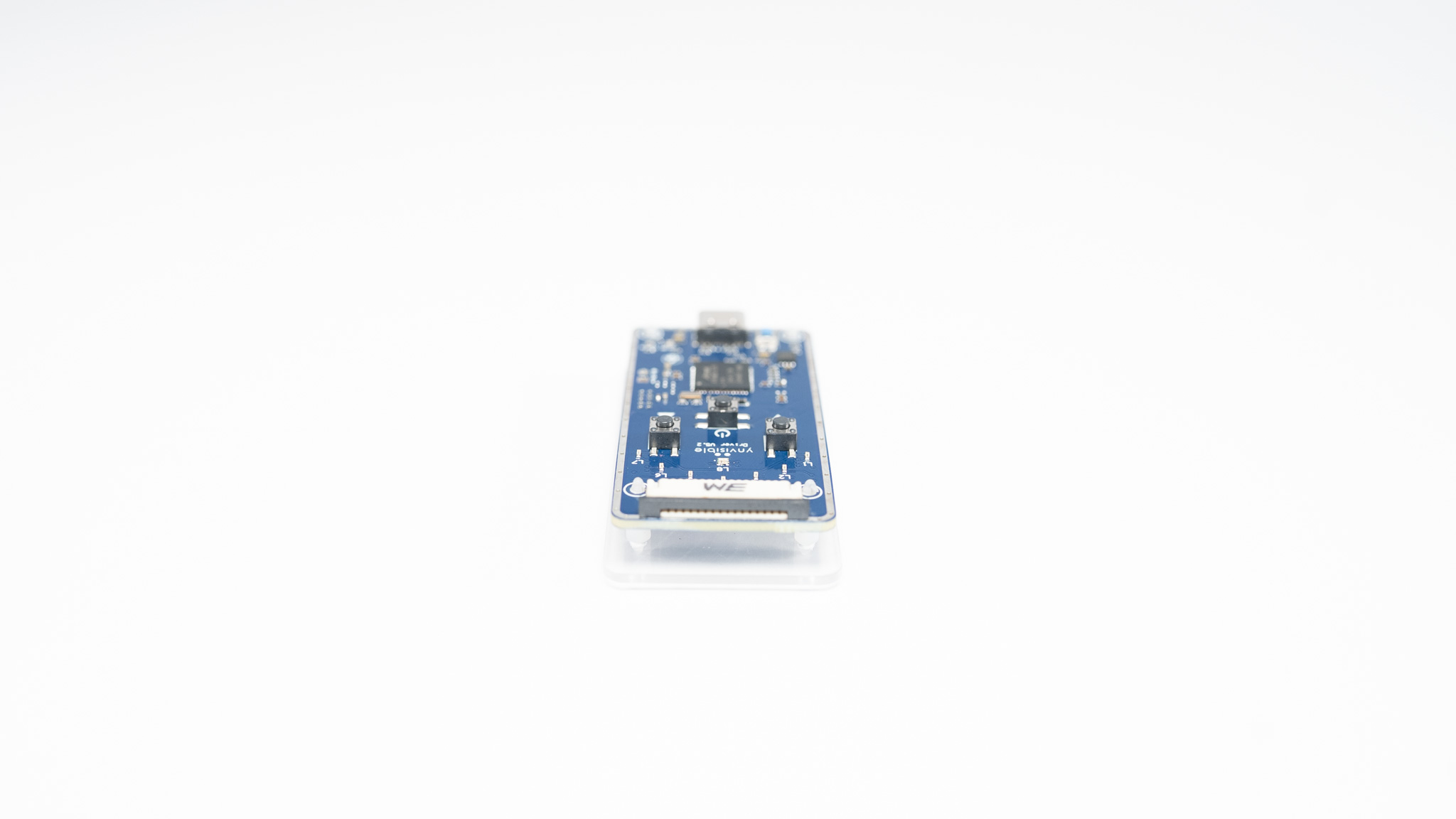

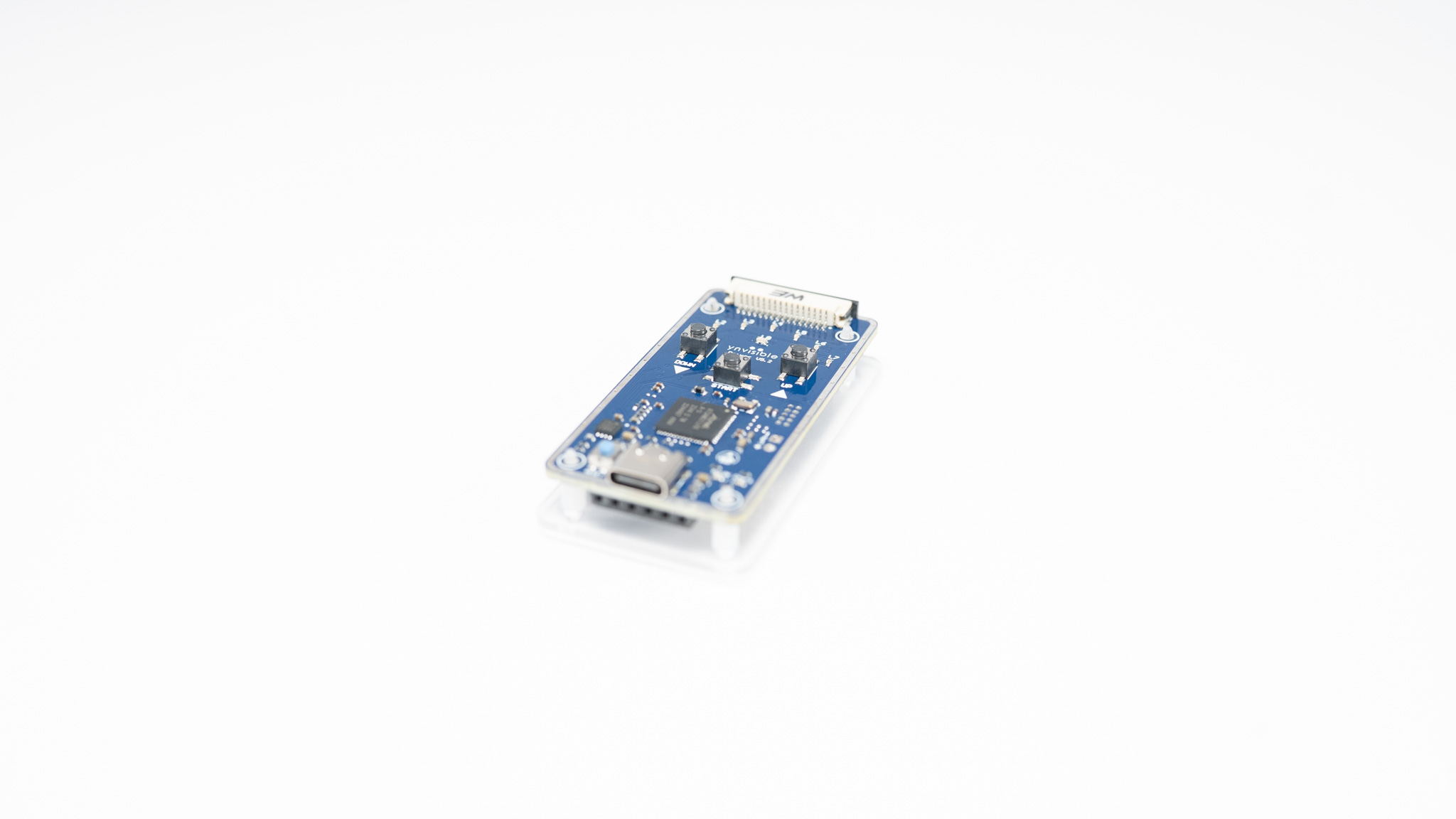

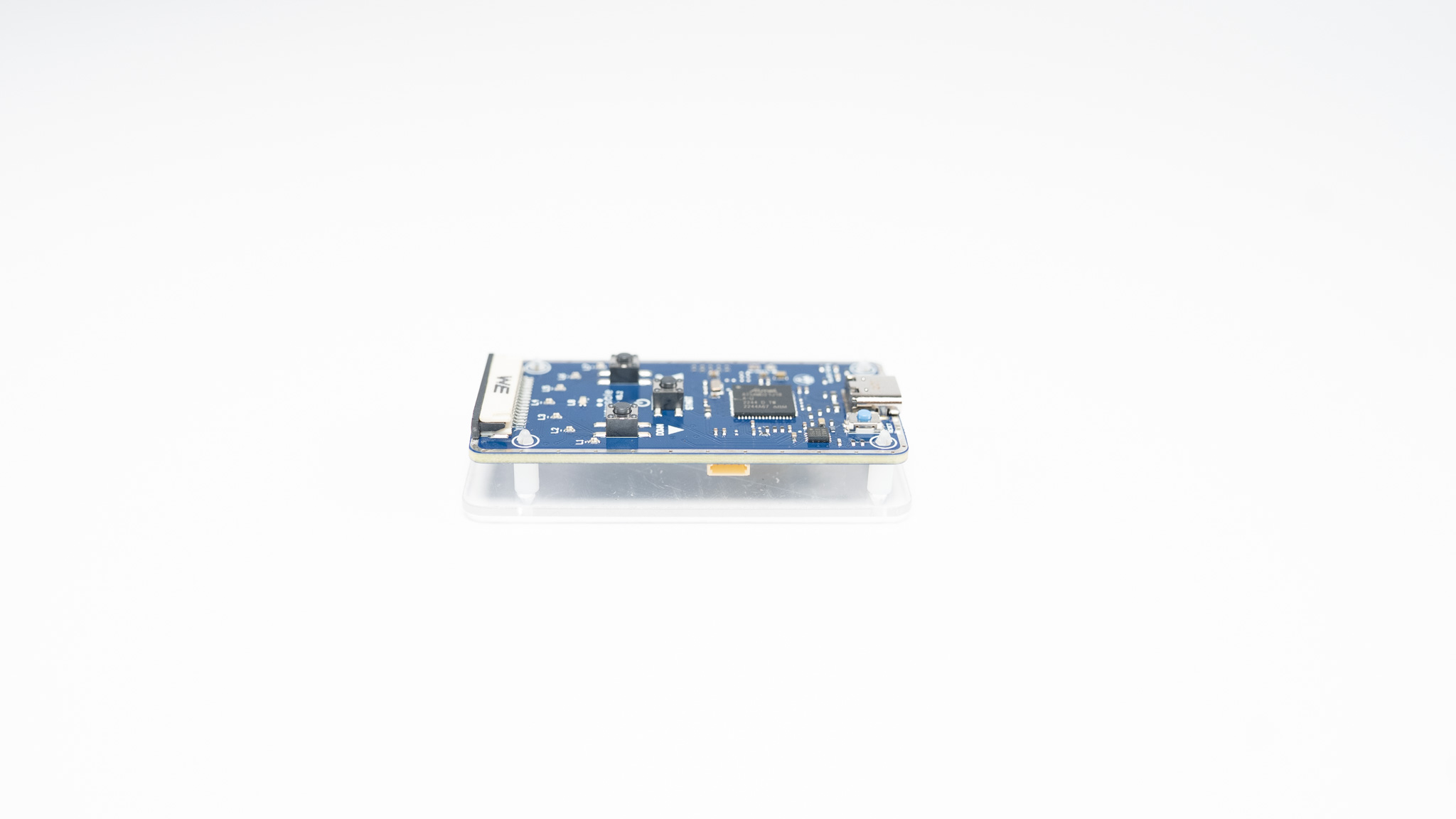

E-paper Display Driver
Dedicated Ynvisible e-paper Display Driver with I2C interface. Compatible with development boards, such as Arduino, and comes with an Arduino software library to make it intuitive to drive the e-paper displays. The e-paper Display Driver has a 16-pin ZIF connector with a 1 mm pitch.
.svg)
Secure card payment
Documentation and support
€ 30 EUR
for Handling and Packaging
€ 30 EUR
Display parameters
White Reflectance
40%
Contrast Ratio (Yb/Yd)
1:3
Angle Dependency
No, lambertian
Thickness
300 μm
Graphical layout
Segments
Segment dimensions
1 mm - 100 mm
Response time
100-1000 ms
Power parameters
Driving voltage
1.5 V
Driving method
Direct drive
Energy consumption
1 mJ/cm^2
Pulse energy
0.25 mJ/cm^2
Image retention w/o power
1-5 minutes
Operating conditions
-20C - +60C
Activations/Cycles
1.000.000
